Protection of racking systems

Protection of racking systems protect rack systems from damage. They provide a wide range of protection options and are highly variable. Thanks to their distinctive colour, the barriers are highly visible even in low light conditions, alerting drivers to potential hazards. The barriers are easy to install and maintain and are made of strong and durable materials that ensure their long life and reliable functionality.

Protection parameters of frontal rack systems

Impact Safety Bollards

Impact Safety Guards

Double Impact Safety Guardrails

Bollards

Diameter D - mm	Height H - mm	Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
100	450	10 500	580	343	59	UL94: HB
120	450	16 850	580	317	59	UL94: HB
140	450	23 950	580	265	59	UL94: HB

Customized solution and colours upon request

Rails

Diameter mm	Height H - mm	Length L - mm	Resistance joules	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
55	110	1000-2000-3000	7 930	250	59	UL94: HB

Customized solution and colours upon request

Guards

Diameter mm	Height H - mm	Length L - mm	Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70	130	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100	160	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120	180	500-1000-1500-2000	33 950	190	183	59	UL94: HB
70/70	450	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100/70	450	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120/70	450	500-1000-1500-2000	33 950	190	183	59	UL94: HB

Customized solution and colours upon request

Applications

Good Protection

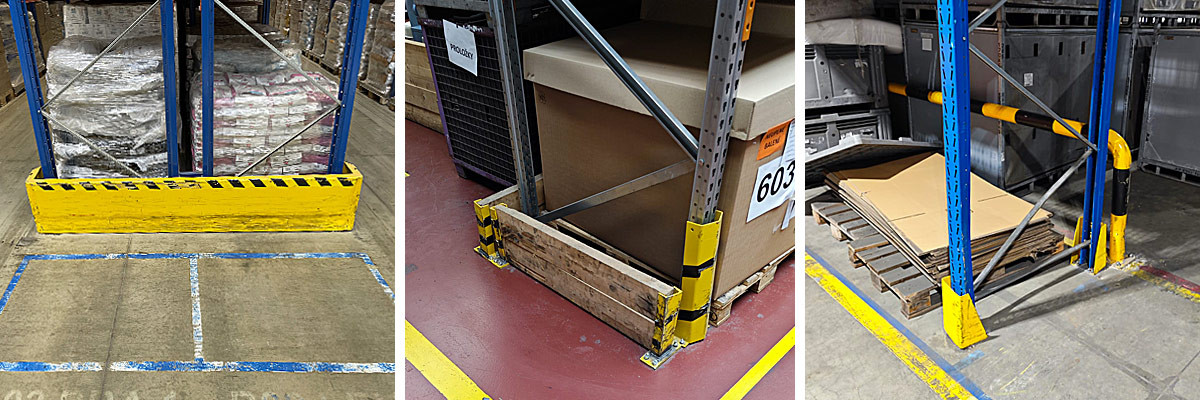

Bad Protection

Compliant Crash Testing

We test our products in compliance with the industry's World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in "Joules" according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don't test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier Guardrails is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
