Impact Safety Bollards
Impact Safety Bollards are designed to protect mainly corners. Thus, bollards can be applied for different scopes: door protection, rack leg protection, column protection, etc. Bollards are usually installed where vehicles run in a roundabout movement. To understand which bollard model suits best the needs, it starts from assessing the Impact Safety Risk:
- Type of material handling equipment moving around: vehicle model & weight (Kg)
- Average speed at which the material handling equipment runs: km/h
- Possible angle of impact at which a material handling equipment can crash: 15°, 30°, 45° or 90°
The mix of this data helps our Safety Consultant to advise about the best bollard model and its applications. Contact us for more on-line information or free on-site consultancy.
Technical Specs

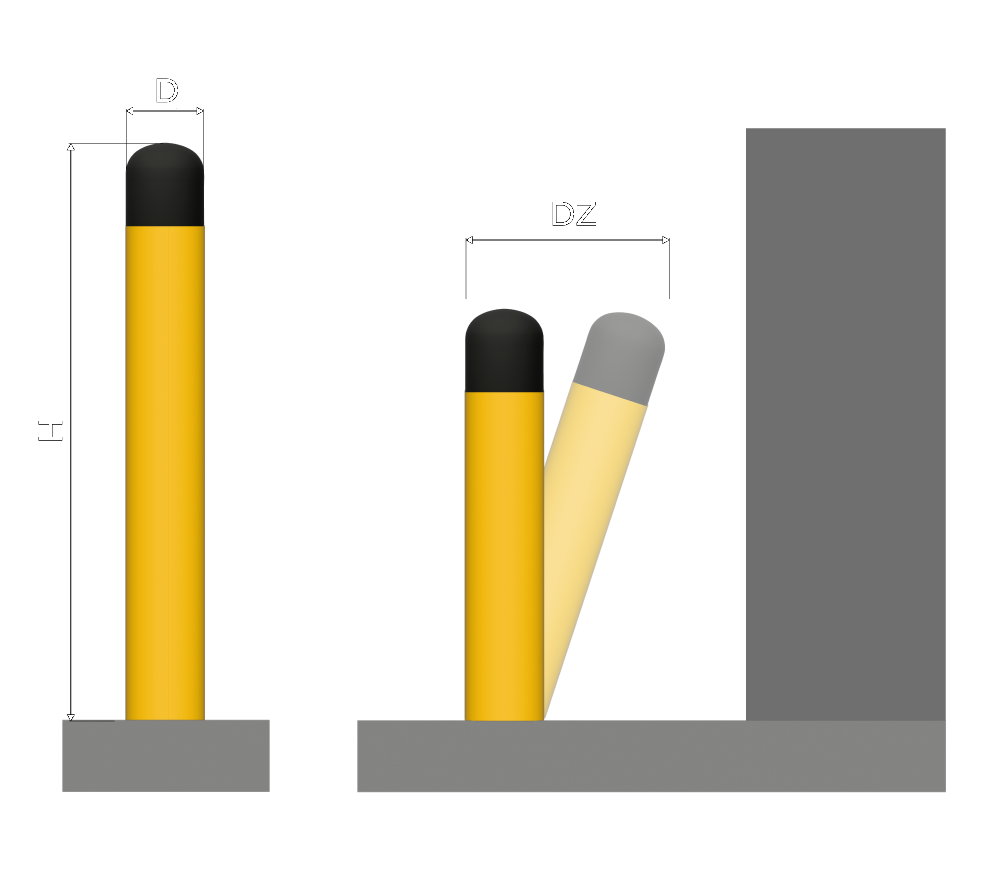

Diameter | Height | Resistance | Anchoring Pullout | Total Floor Space |
|
|
| 100 | 450 | 10 500 | 580 | 343 | 59 | UL94: HB |
| 120 | 450 | 16 850 | 580 | 317 | 59 | UL94: HB |
| 140 | 450 | 23 950 | 580 | 265 | 59 | UL94: HB |
| 120 | 780 | 16 850 | 580 | 400 | 59 | UL94: HB |
| 140 | 780 | 23 950 | 580 | 375 | 59 | UL94: HB |
| 120 | 1110 | 16 850 | 580 | 495 | 59 | UL94: HB |
| 140 | 1110 | 23 950 | 580 | 450 | 59 | UL94: HB |
Customized solution and colours upon request
Impact Energy Information
Vehicle Energy: 17 350 J
| Example vehicle weight and speed: | |
|---|---|
| Weight | 5 500 kg |
| Speed | 9 km/h |
| Vehicle Energy | 17 350 J |
Tested to be compliant by BSI – PAS13 and Italy’s UNI 11886.
Crash Tests are certified by TÜV SÜD.
Applications
Column Protection
Machinery Protection
Corner Protection
Door Ways Protection
Good Protection
Bad Protection
Compliant Crash Testing
We test our products in compliance with the industry's World-class standards: PAS13:2017 and UNI 11886.
We measure barriers resistance in "Joules" according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)We make sure test only on real floor: armed concrete; we don't test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.
Finally, Bambarrier Bollard is certified compliant when:
It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
Bollard Fixing
Impact Safety Bollards protect
