Truck Guards

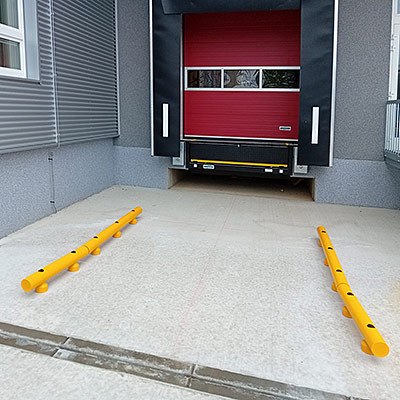

Truck Guards help guide parked vehicles to loading bays. Thanks to their distinctive colour, the barriers are highly visible even in low-light conditions, alerting drivers to potential hazards. The barriers are easy to install and maintain, made of strong and durable materials that ensure their long life and reliable functionality.

Truck Guards Parameters

Diameter D - mm	Height H - mm	Length L - mm	Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
120	125	500-1000-1500-2000	33 950	190	183	59	UL94: HB
120	180	500-1000-1500-2000	33 950	190	183	59	UL94: HB

Diameter

D - mm

Height

H - mm

Length
L - mm

Resistance

joules

Anchoring Pullout

kN

Total Floor Space

mm

IP Grade

Flame Extinguishing Rate

120

125

500-1000-1500-2000

33 950

190

183

59

UL94: HB

120

180

500-1000-1500-2000

33 950

190

183

59

UL94: HB

Impact Energy Information

Vehicle Energy: 17 350 J

(click on the image to change the impact angle)

Example vehicle weight and speed:
Angle of approach	90°
Weight	5 500 kg
Speed	9 km/h
Vehicle Energy	17 350 J

TUV logo

Tested to be compliant by BSI – PAS13 and Italy’s UNI 11886.

Crash Tests are certified by TÜV SÜD.

Modul: Miniappka

Applications

Compliant Crash Testing

We test our products in compliance with the industry's World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in "Joules" according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don't test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier Guardrails is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
