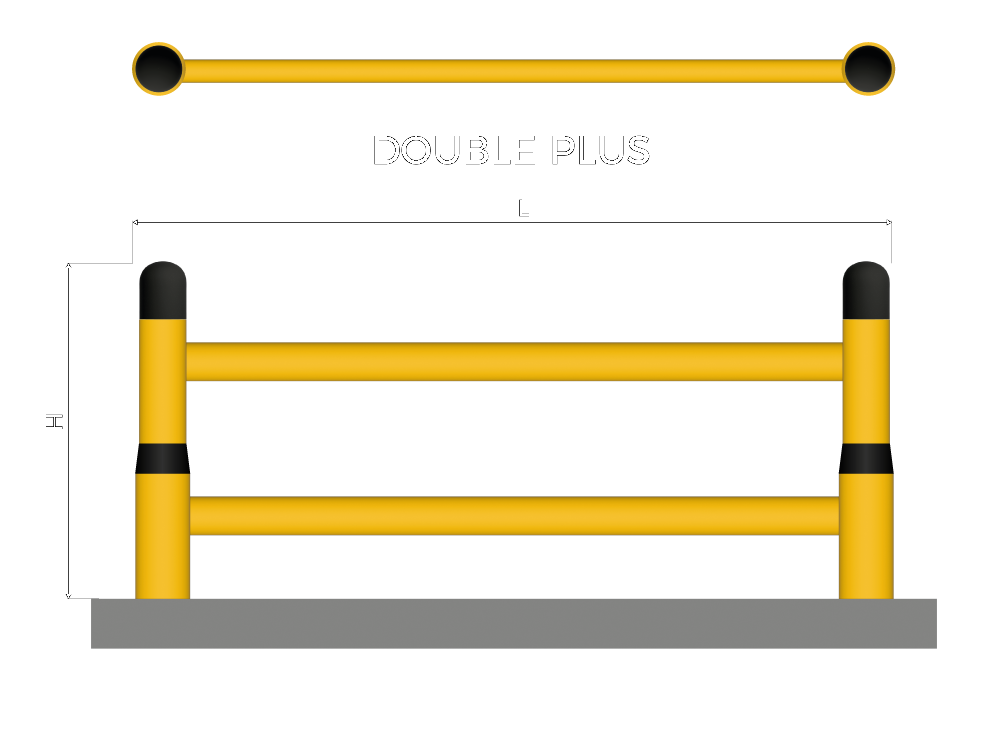

Impact Safety Guardrails DOUBLE PLUS

Impact Safety Guardrails DOUBLE PLUS are designed to protect mainly straight lines. Thus, guardrails can be applied for different scopes: Wall protection, rack end protection, column protection, machinery protection, loading dock protection, door protection, etc. Guardrails are usually applied to protect against material handling equipment when crashing at 90° degrees angle. To understand which guardrail model suits best the needs, it starts from assessing the Impact Safety Risk:

Type of material handling equipment moving around: vehicle model & weight (Kg)
Average speed at which the material handling equipment runs: km/h
Possible angle of impact at which a material handling equipment can crash: 15°, 30°, 45° or 90°

The mix of this data helps our Safety Consultant to advise about the best guardrail model and its applications. Contact us for more on-line information or free on-site consultancy.

Impact Safety Guardrails DOUBLE PLUS

Bollards

Diameter mm	Height H - mm		Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
120	860		16 850	580	400	59	UL94: HB
140	860		23 950	580	375	59	UL94: HB

Diameter

mm

Height

H - mm

Resistance

joules

Anchoring Pullout
kN

Total Floor Space

mm

IP Grade

Flame Extinguishing Rate

120

860

16 850

580

400

59

UL94: HB

140

860

23 950

580

375

59

UL94: HB

Customized solution and colours upon request

Rails

Diameter mm	Height H - mm	Length L - mm	Resistance joules		Total Floor Space mm	IP Grade	Flame Extinguishing Rate
55	110	1000-2000-3000	7 930		250	59	UL94: HB

Diameter

mm

Height

H - mm

Length
L - mm

Resistance

joules

Total Floor Space

mm

IP Grade

Flame Extinguishing Rate

55

110

1000-2000-3000

7 930

250

59

UL94: HB

Customized solution and colours upon request

Guards

Diameter mm	Height H - mm	Length L - mm	Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70	130	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100	160	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120	180	500-1000-1500-2000	33 950	190	183	59	UL94: HB

Customized solution and colours upon request

Impact Energy Information

Vehicle Energy: 6 800 J

(click on the image to change the impact angle)

Example vehicle weight and speed:
Angle of approach	90°
Weight	3 500 kg
Speed	7 km/h
Vehicle Energy	6 800 J

TUV logo

Tested to be compliant by BSI – PAS13 and Italy’s UNI 11886.

Crash Tests are certified by TÜV SÜD.

Modul: Miniappka

Applications

Machinery Protection

Column Protection

Employee Protection

Production Lines Protection

Good Protection

Bad Protection

Compliant Crash Testing

We test our products in compliance with the industry's World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in "Joules" according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don't test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier Guardrails is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
