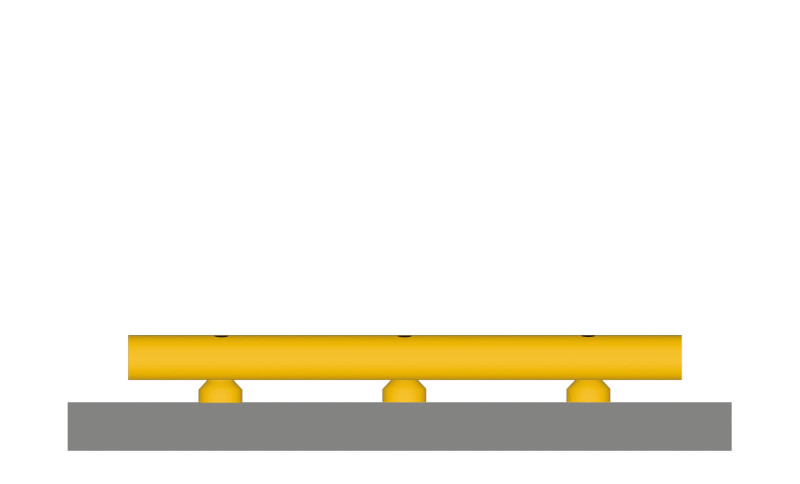

High Impact Safety Guards

High Impact Safety Guards make a significant contribution to safety by protecting pedestrians and workers from collisions with vehicles, while also protecting buildings and infrastructure from damage. These barriers effectively regulate traffic and prevent unauthorised entry. Thanks to their distinctive colour, the barriers are highly visible even in low-light conditions, alerting drivers to potential hazards. The barriers are easy to install and maintain, made of strong and durable materials that ensure their long life and reliable functionality.

High Impact Safety Guards Parameters

Diameter D - mm	Height H - mm	Length L - mm	Resistance joules	Anchoring Pullout kN	Total Floor Space mm	IP Grade	Flame Extinguishing Rate
70	225	500-1000-1500-2000	9 369	190	94	59	UL94: HB
70	270	500-1000-1500-2000	9 369	190	94	59	UL94: HB
100	250	500-1000-1500-2000	19 360	190	140	59	UL94: HB
100	300	500-1000-1500-2000	19 360	190	140	59	UL94: HB
120	295	500-1000-1500-2000	33 950	190	183	59	UL94: HB
120	365	500-1000-1500-2000	33 950	190	183	59	UL94: HB

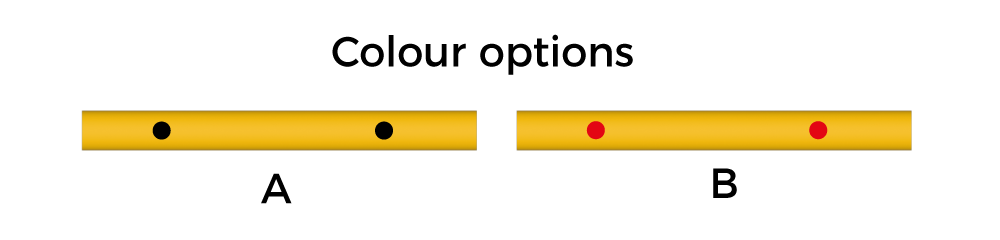

Customized solution and colours upon request

Impact Energy Information

Vehicle Energy: 17 350 J

(click on the image to change the impact angle)

Example vehicle weight and speed:
Angle of approach	90°
Weight	5 500 kg
Speed	9 km/h
Vehicle Energy	17 350 J

TUV logo

Tested to be compliant by BSI – PAS13 and Italy’s UNI 11886.

Crash Tests are certified by TÜV SÜD.

Modul: Miniappka

Applications

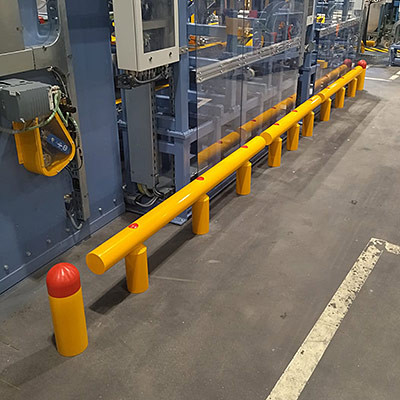

Machinery Protection

Production Lines Protection

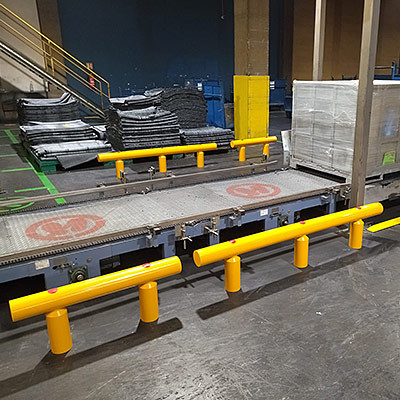

Technology Protection

Rack Protection

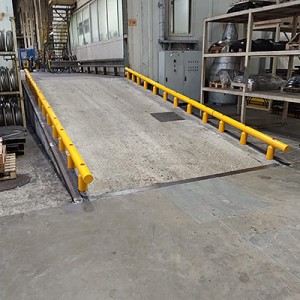

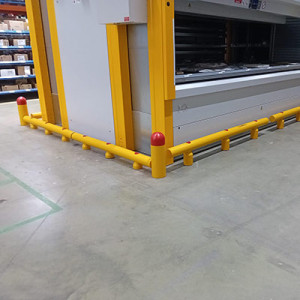

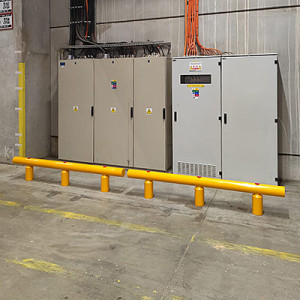

Good Protection

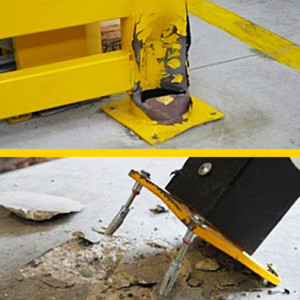

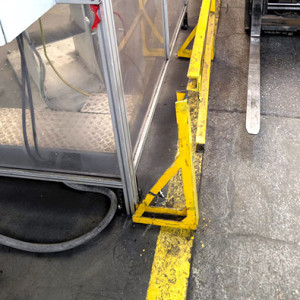

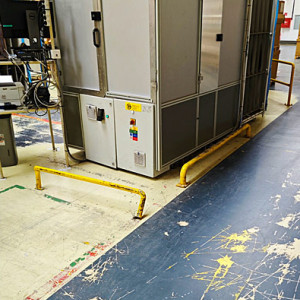

Bad Protection

Compliant Crash Testing

Modul: HTML video

We test our products in compliance with the industry's World-class standards: PAS13:2017 and UNI 11886.

We measure barriers resistance in "Joules" according to the following formula:
Kinetic Energy = 1/2*m*v² | M= Mass (Kg) and V = Velocity (Km/h)
We make sure test only on real floor: armed concrete; we don't test on metal platforms.
We make sure vehicle impact takes place at the worst-scenario angle: 90°.

Finally, Bambarrier Guards is certified compliant when:

It stops the crashing vehicle safely without breaking itself and without breaking the floor.
It can be hit repeatedly without getting loose and without breaking the floor.
When after an impact, it occupies a very small space on the floor.
